Max Working Height: 50 ft 6 in | 15.56 m
Max Horizontal Reach: 34 ft | 10.36 m
Below Ground Reach: 4 ft 2 in | 1.27 m
Platform Capacity: 600 lb | 272 kg
Machine Width: 8 ft 5 in | 2.56 m

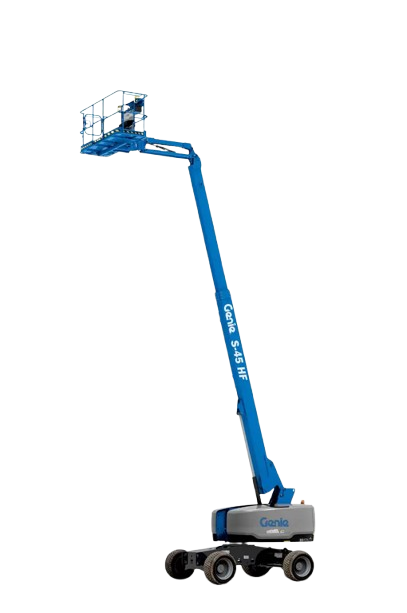

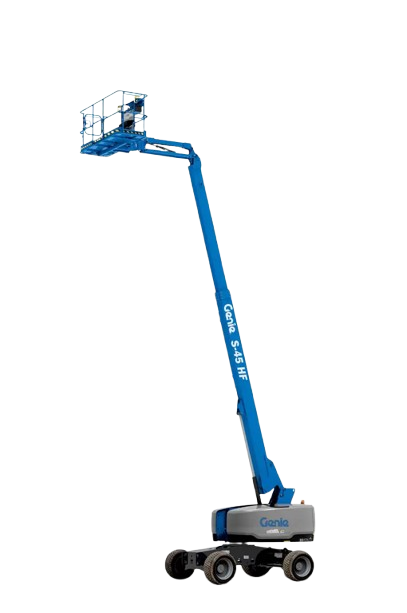

The Genie S-45 HF high float telescopic boom lift delivers strong reach, heavy-lifting capability, and specialized low-ground-pressure performance for sensitive surface conditions such as turf, sand, and finished landscapes. Designed for contractors working in environments where traditional rough terrain tires may cause damage, the S-45 HF “floats” over delicate ground while still providing the power and stability needed for demanding outdoor applications.

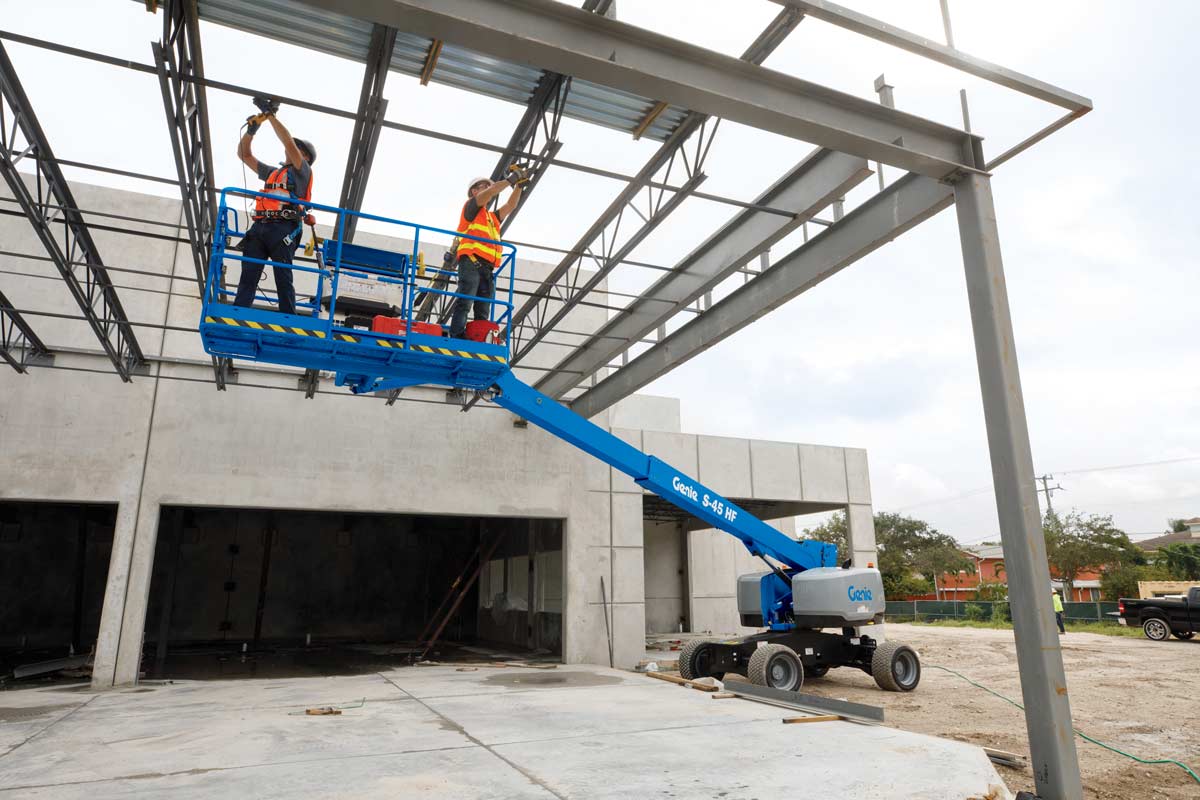

With a maximum working height of 50 ft. 6 in. and a horizontal reach of 34 ft., the S-45 HF provides excellent up-and-out positioning for construction, industrial maintenance, and specialty access work. Its below-ground reach of 4 ft. 2 in. adds additional flexibility for tasks requiring downward access or positioning around grade-level obstacles.
Built for productivity in challenging terrain conditions, the S-45 HF features a high float design that helps protect sensitive surfaces while maintaining strong traction and control. Four-wheel drive with positive traction ensures consistent power delivery to all drive wheels, while 45% gradeability supports confident operation on slopes and uneven terrain.
Operator-focused features such as a 60° platform rotation and 360° continuous turntable rotation enable precise positioning and improved efficiency at height. A 600 lb. platform capacity provides ample strength for operators, tools, and materials across a wide range of elevated tasks.
Combining reach, stability, and turf-protecting performance, the Genie S-45 HF is an ideal solution for construction, landscaping-sensitive projects, stadium work, and industrial applications where ground protection is critical.
Contact ASCO Equipment today for availability, rental options, and pricing on the Genie S-45 HF high float telescopic boom lift.
