More Product Details

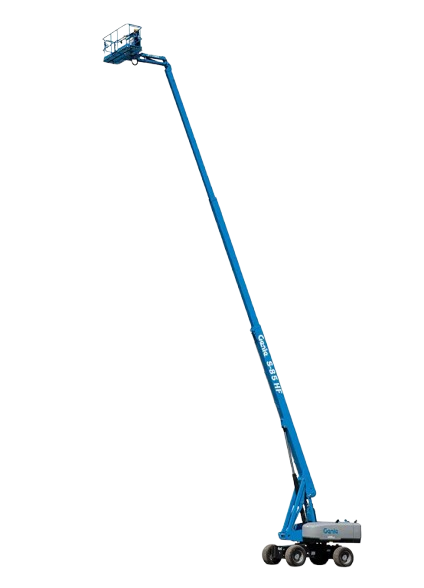

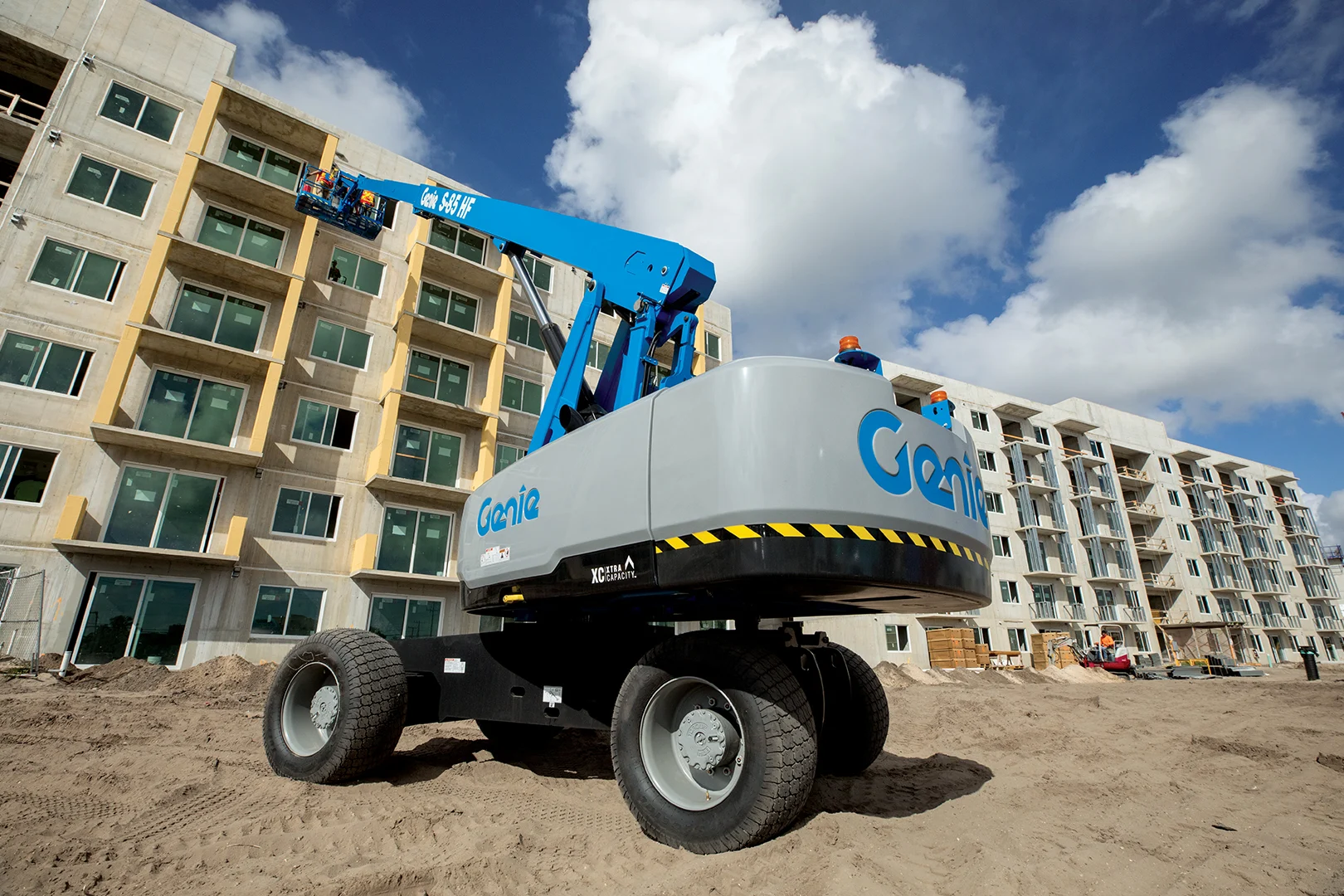

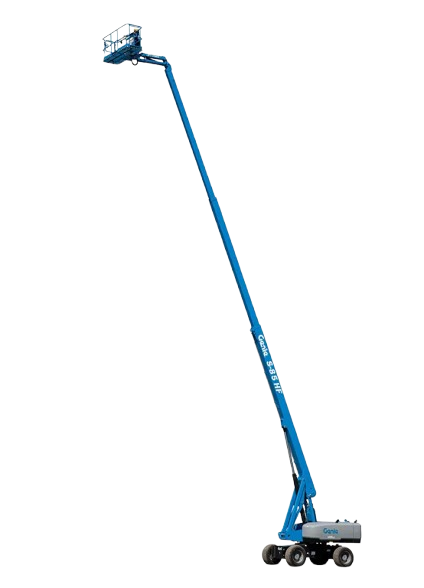

The Genie S-85 HF high float telescopic boom lift delivers exceptional reach, heavy-lifting capability, and specialized low-ground-pressure performance for sensitive surface conditions such as turf, sand, and landscaped environments. Designed to “float” across delicate ground conditions, the S-85 HF helps protect softer surfaces from damage while still providing the rugged performance needed for demanding outdoor construction and industrial applications.
With a maximum working height of 91 ft. and an impressive horizontal reach of 72 ft. 6 in., the S-85 HF provides outstanding access for elevated work across large jobsites and hard-to-reach areas. Its below-ground reach of 8 ft. 8 in. adds additional flexibility for applications requiring downward positioning or access around structural obstacles.
Built for productivity and heavy-duty performance, the S-85 HF features dual platform capacities of 600 lb. unrestricted and 1,000 lb. restricted, allowing operators to safely lift heavier tools, materials, and multiple occupants depending on machine configuration. Its telescopic boom design delivers efficient up-and-out positioning while maintaining smooth control at height.
Engineered for sensitive terrain conditions, the S-85 HF utilizes a high float design that minimizes ground disturbance while maintaining excellent traction and stability. Four-wheel drive with positive traction helps distribute power evenly to all wheels, while 45% gradeability supports confident travel across slopes and uneven ground conditions.
Operator-focused features such as 160° platform rotation and a 360° continuous rotation turntable provide quick, precise positioning around structures and obstacles. A virtual pivot primary boom design also helps optimize the machine’s center of gravity for reduced machine weight and improved performance on delicate surfaces.
With a machine width of 8 ft. 6 in. and overall length of 40 ft. 7 in., the Genie S-85 HF combines extended reach, high-capacity lifting performance, and turf-protecting mobility for demanding jobsites where ground protection is critical.
Contact ASCO Equipment today for availability, rental options, and pricing on the Genie S-85 HF high float telescopic boom lift.
