AMMANN

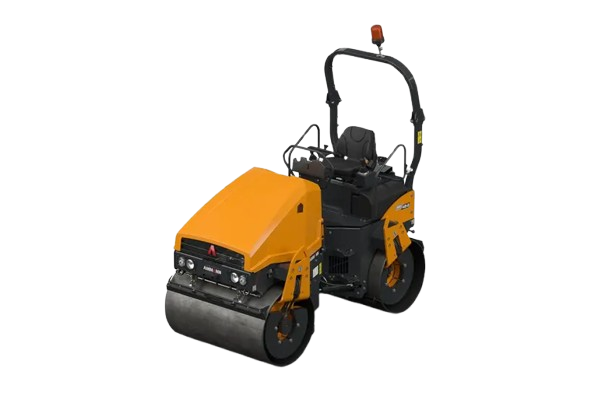

ARX 45-2

ARX 45-2 Specifications

Operating Weight: 9,744 lb | 4420 kg

Engine Power: 44 HP | 32.8 kW

Drum Width: 54.3 in | 1380 mm

Drum Diameter: 33.5 in | 850 mm

Overall Height: 111.8 inv| 2840 mm

Fuel Tank Capacity: 15.1 gal | 57 L

More Product Details

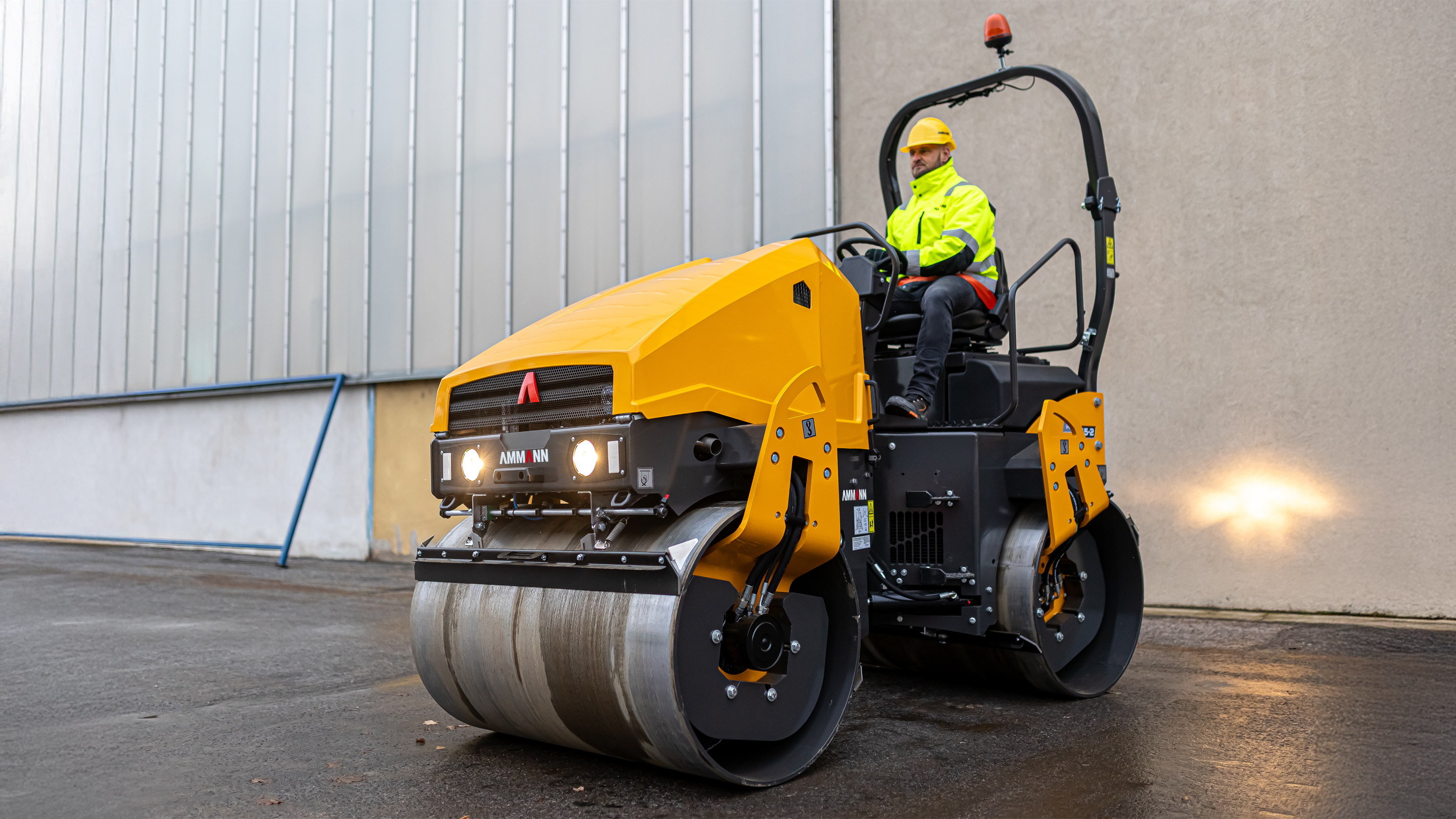

The Ammann ARX 45-2 is a light tandem vibratory roller built for asphalt paving, road work, repairs, and other jobs where you need a roller that is easy to handle but still has plenty of compaction power. With a 44 HP Kubota engine, 54.3-inch drum width, and 9,744-lb operating weight, the ARX 45-2 is a good fit for small and medium-sized jobs.

The ARX 45-2 puts out up to 12,949 lb of centrifugal force and has two vibration frequencies and two amplitude settings. That gives the operator some flexibility to set the machine up for the material being compacted. It can also travel up to 6.2 mph when it’s time to move to the next part of the job.

One of the handy features on the ARX 45-2 is the ability to quickly move the drums from in-line to an offset position. The 1.6-inch drum offset makes it easier to get closer to curbs, walls, and other obstacles without having to fight the machine. The articulated joint also lets the drums stay in contact with the surface as the machine moves over uneven areas.

The roller has front and rear drive and vibration, automatic vibration control, and an electronic drive lever for smooth starts and stops. The 89.8-gallon water tank helps keep the drums wet during asphalt work, and the open operator platform gives the operator good visibility around the machine.

If you need a tandem roller that can handle everyday asphalt and road work without being too big or difficult to move around, the Ammann ARX 45-2 is a practical choice for a wide range of jobs.

Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 45-2 is the right roller for your job.

bg-textured-grey

Similar AMMANN Models

ARX_40-2-removebg-preview

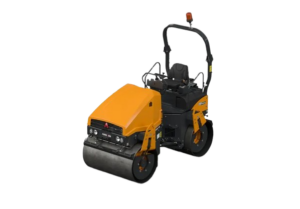

ARX 40-2
