AMMANN

ARS 170

ARS 170 Specifications

Operating Weight: 36,244 lb | 16,440 kg

Engine Power: 142 HP | 106 kW

Drum Width: 83.9 in  2,130 mm

Centrifugal Force: 74,861 lbf | 333 kN

Maximum Transport Speed: 7.9 mph | 12.7 km/h

Maximum Working Speed: 4.0 mph | 6.5 km/h

More Product Details

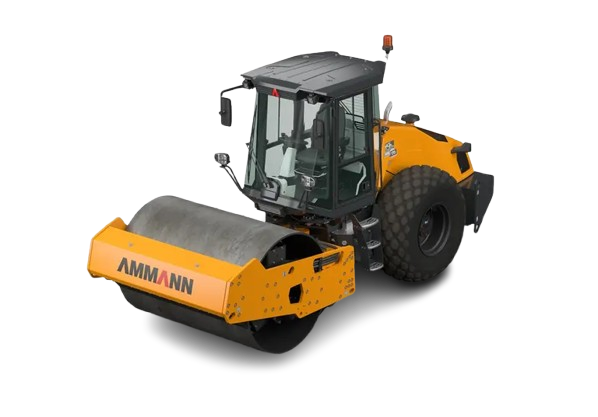

The Ammann ARS 170 is a heavy-duty single drum roller designed for demanding soil compaction on road construction, site development, utility, and other large-scale earthwork projects. With a 142 HP engine and an operating weight of 36,244 lb, the ARS 170 delivers the power, weight, and compaction force needed for tough jobsites.

The ARS 170 features an 83.9-inch drum and up to 74,861 lbf of centrifugal force for strong, consistent soil compaction. Its two amplitudes and multiple vibration frequencies allow operators to adjust the machine to different soil types and jobsite conditions. A padfoot drum configuration is also available for applications requiring additional penetration and kneading action.

With a maximum working speed of 4.0 mph and a transport speed of up to 7.9 mph, the ARS 170 combines heavy-duty compaction performance with efficient movement around the jobsite. Its compact design and no-rear-axle configuration provide a low center of gravity for traction, stability, and maneuverability.

Whether you’re compacting road base, fill dirt, aggregate, or preparing a large construction site, the Ammann ARS 170 is built for demanding soil compaction work.

Need a reliable soil compactor for your next project? Rent or purchase the Ammann ARS 170 single drum roller from ASCO Equipment. Contact us today!
