Recommended Engine Power: 300-620 hp | 224-462 kW
Operating Weight: 22,000 lb | 9979 kg
Heaped Capacity: 17.5 yd³ | 13.4 m³
Cutting Width: 108.5 in | 275.6 cm
Overall Width: 120 in | 259 cm
Overall Length: 360 in | 914.4 cm

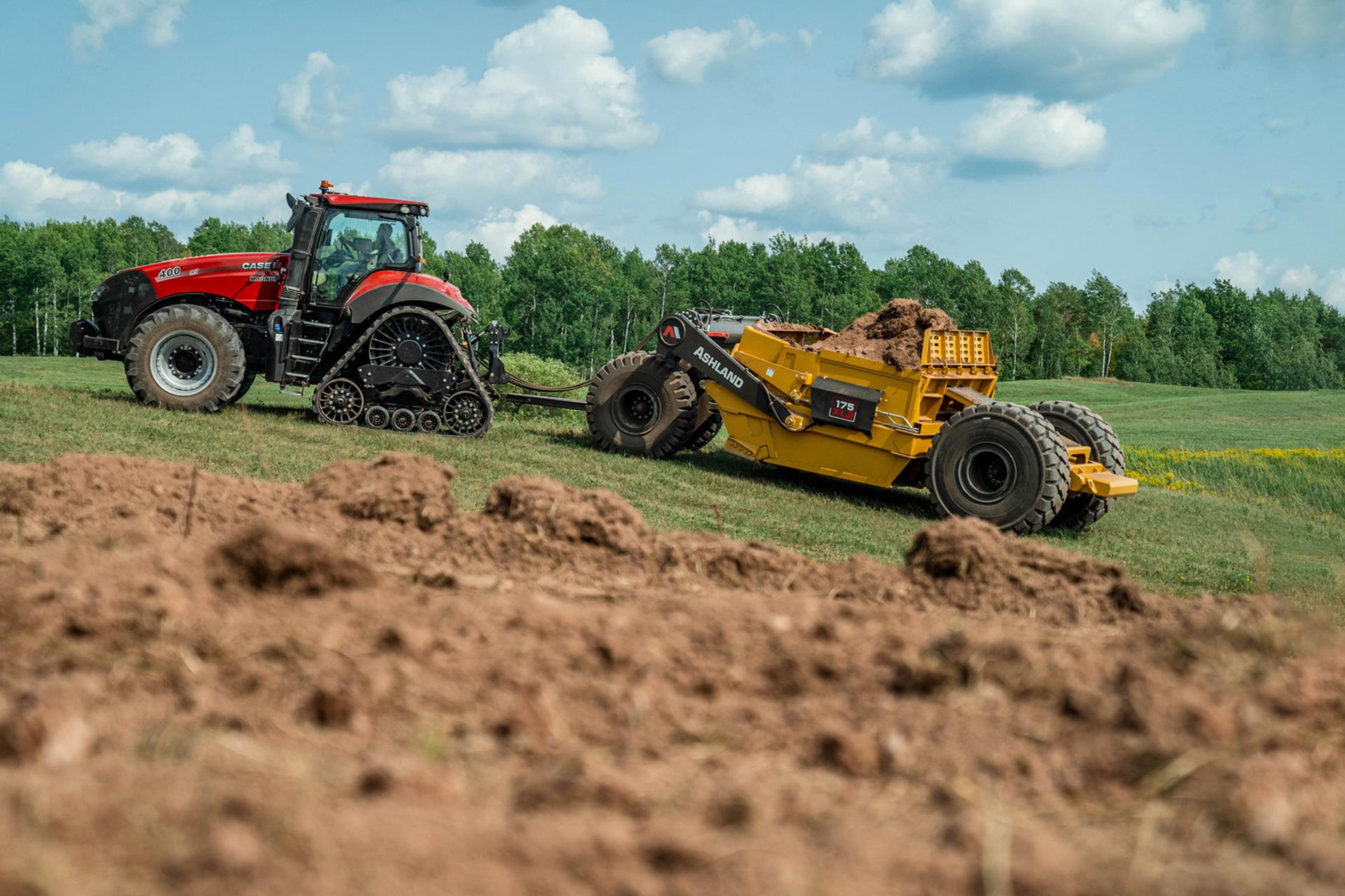

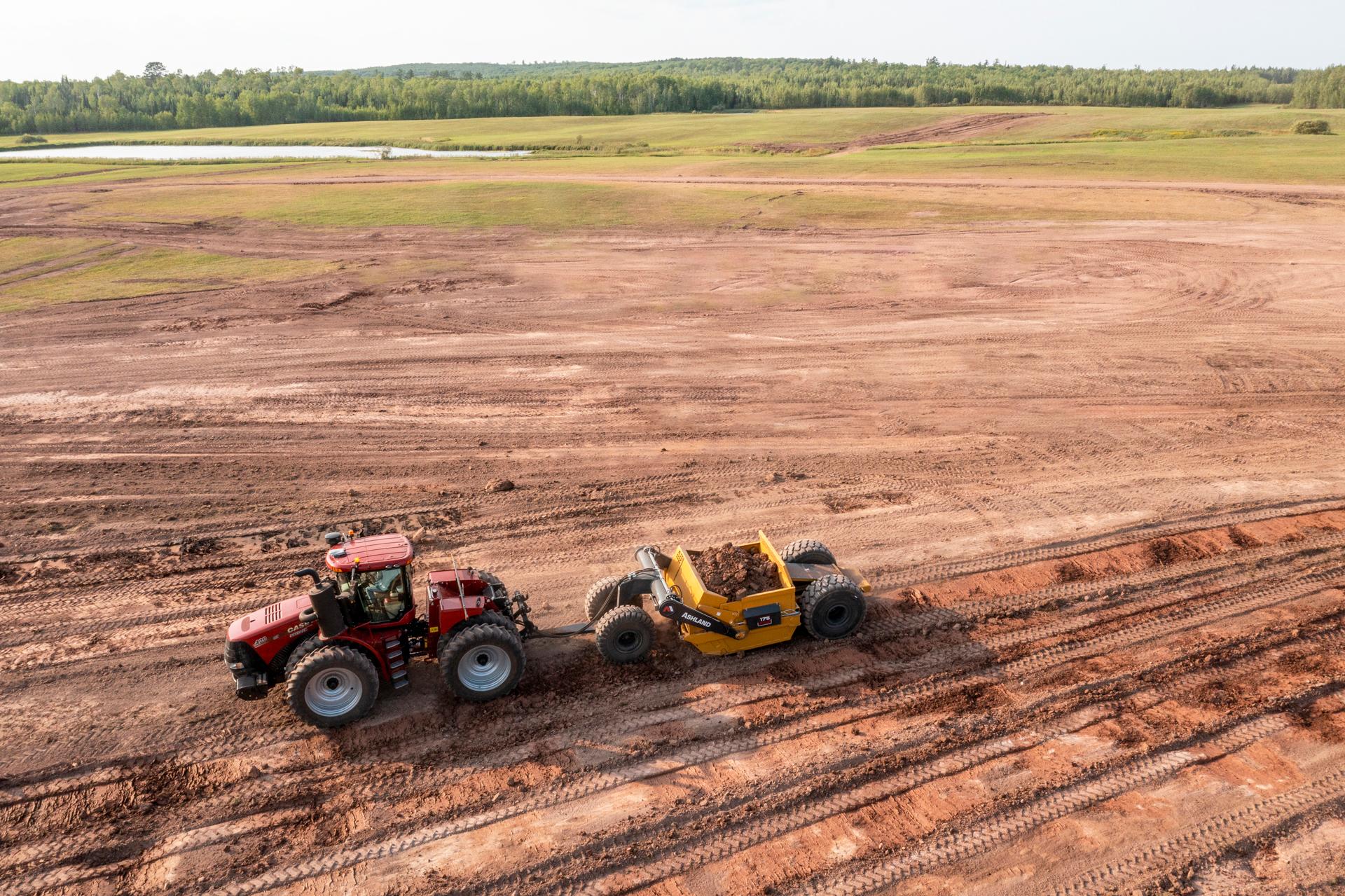

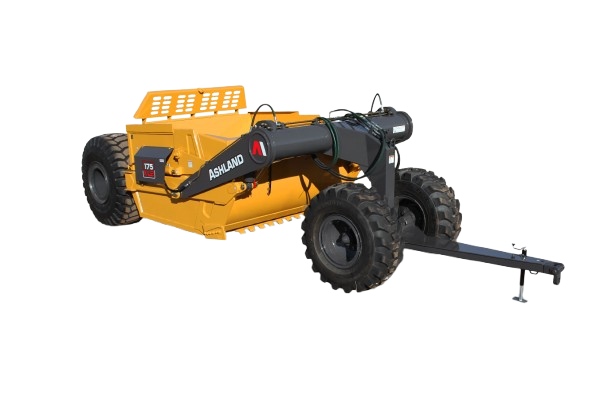

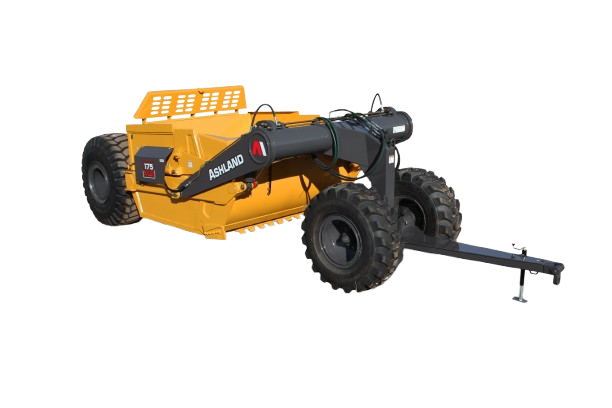

The Ashland 175XL2 Dolly Wheel Scraper is built for operators who need maximum capacity, efficiency, and reliability when moving serious dirt across large acres. The 175XL2 is the largest dolly wheel scraper in the lineup and is designed to help you get more done with fewer passes. With a 17.5 cubic yard heaped capacity and a 300–620 HP range, the 175XL2 is made for high-production ag and land improvement work. It’s commonly used for waterway construction, drainage work, pond building, and large-scale field leveling where consistency and capacity really matter.
The dolly wheel design makes it easy to hook up to a standard ag hitch while helping the machine carry its own weight for better flotation and smoother pulling. Built with a heavy-duty steel frame, wide cut, and simple hydraulic controls, it’s designed to load easy, unload clean, and keep you moving without unnecessary complexity. It’s the kind of scraper you can hook up and go to work with—day after day.
Ready to move more dirt with less hassle? Contact ASCO Equipment today to learn more, request pricing, discuss financing options, or schedule a demo.
