GENIE

SX-135 XC

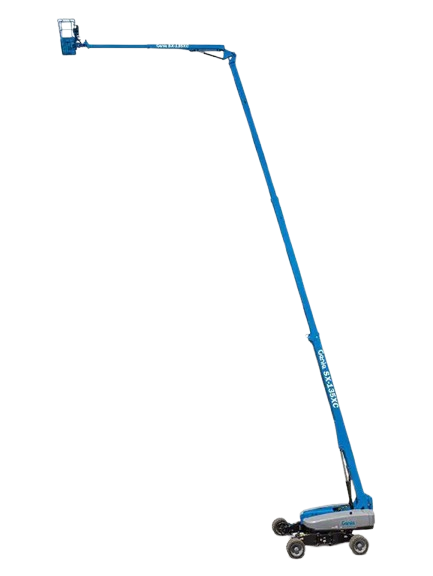

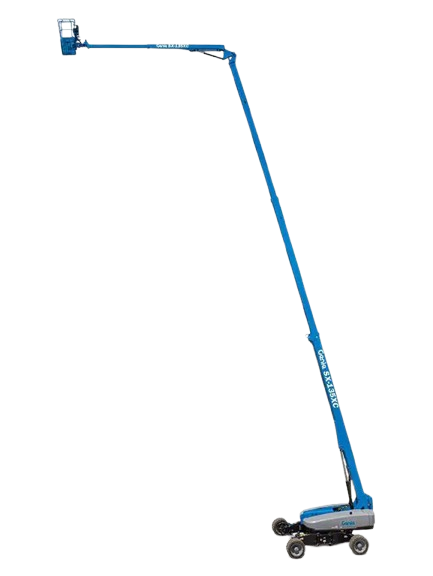

SX-135 XC Specifications

Max Working Height: 141 ft | 43.15 m

Max Horizontal Reach: 90 ft | 27.43 m

Below Ground Reach: 19 ft 8 in | 6.00 m

Platform Capacity: 660 lb | 300 kg

Machine Width: 8 ft 2 in | 2.49 m

Length: 64 ft 10 in | 19.76 m

More Product Details

The Genie SX-135 XC telescopic boom lift delivers industry-leading outreach, exceptional lifting capability, and advanced positioning performance for the most demanding high-reach construction, industrial, infrastructure, and utility applications. Engineered for maximum operational versatility, the SX-135 XC is built to handle heavier loads at extreme heights while maintaining smooth, precise control throughout the full working envelope.

With a maximum working height of 141 ft. and an unmatched horizontal reach of 90 ft., the SX-135 XC provides outstanding access across expansive jobsites and hard-to-reach work areas. Its below-grade reach of 19 ft. 8 in. adds significant flexibility for bridge work, utility access, industrial maintenance, and applications requiring positioning below ground level or around large structural obstacles.

A standout feature of the SX-135 XC is its dual platform capacity of 660 lb. unrestricted and 1,000 lb. restricted, allowing operators to safely lift heavier tools, materials, and multiple occupants depending on machine configuration. Advanced load sense technology provides accurate load weighing and zero-load field calibration to support safe, efficient operation at height.

Designed for superior accessibility and positioning, the SX-135 XC features an advanced Telescoping Jib-Extend® system with 18 ft. to 30 ft. of extension and 130° jib articulation, giving operators exceptional flexibility when working around structures, steel, utility lines, and confined access points. Its smooth range-of-motion envelope helps eliminate abrupt boom transitions for more controlled and precise operation at extreme reach.

Built for demanding outdoor environments, the SX-135 XC combines rugged rough terrain capability with advanced control systems and durable boom architecture to maximize productivity on challenging jobsites. Its Mini Genie X-Chassis® design supports more compact transport dimensions while maintaining the stability required for ultra-high-reach applications.

With a variable machine width of 8 ft. 2 in. to 12 ft. 11 in. and an overall machine length of 64 ft. 10 in., the Genie SX-135 XC is engineered to deliver extreme reach, heavy-lifting performance, and dependable terrain capability for some of the toughest elevated access jobs in the industry.

Contact ASCO Equipment today for availability, a price quote, and financing options on the Genie SX-135 XC telescopic boom lift.

bg-textured-grey

Similar Genie Models

sx-125xc_cutout-1-removebg-preview
SX-125 XC
New Equipment
sx-150_cutout-1-removebg-preview
SX-150
New Equipment
sx-180_cutout-1-removebg-preview

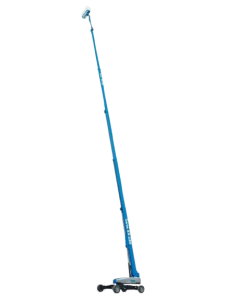

SX-180
