GENIE

SX-150

SX-150 Specifications

Max Working Height: 158 ft | 48.33 m

Max Horizontal Reach: 80 ft | 24.38 m

Below Ground Reach: 2 ft | 0.61 m

Platform Capacity: 750 lb | 340 kg

Machine Width: 8 ft 2 in | 2.49 m

Machine Length: 53 ft 1 in | 16.18 m

More Product Details

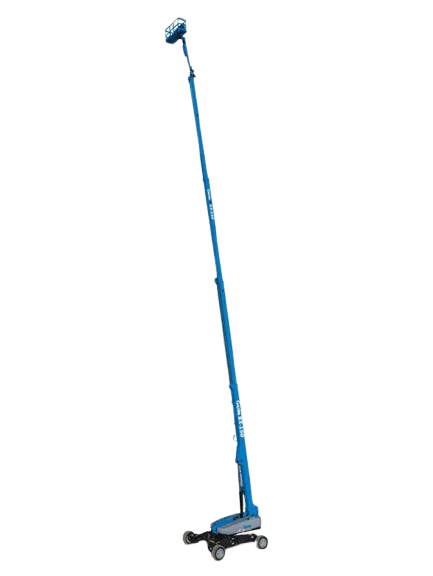

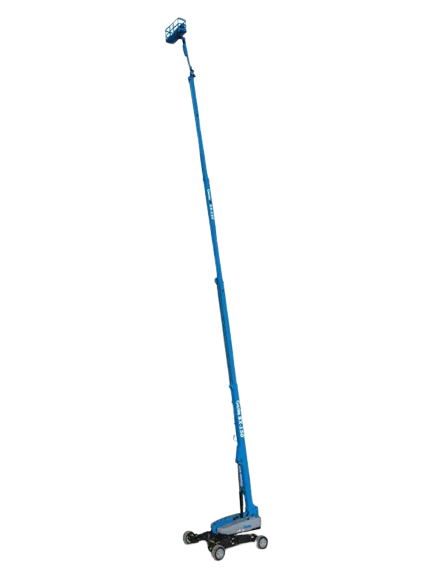

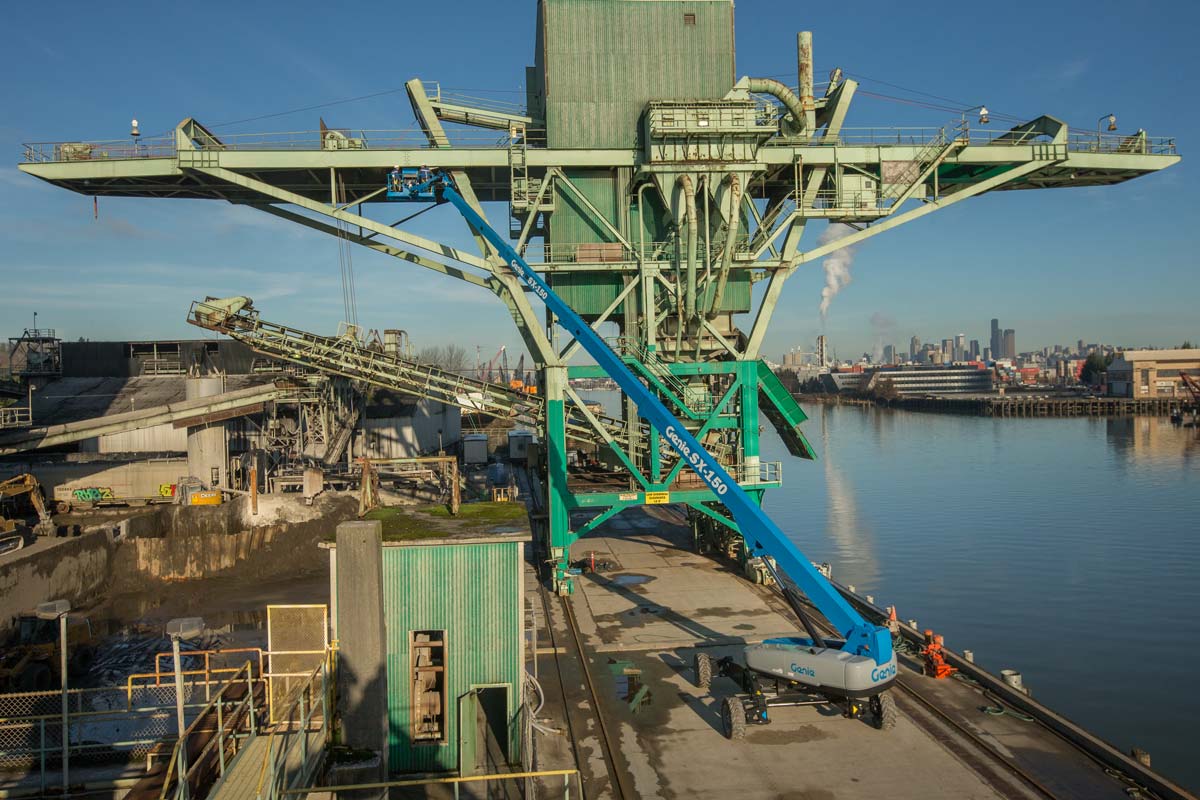

The Genie SX-150 telescopic boom lift delivers extreme vertical reach, outstanding horizontal outreach, and uncompromising lifting performance for the most demanding high-access construction, industrial, utility, and infrastructure applications. Engineered for maximum productivity at extreme heights, the SX-150 is designed to handle challenging work environments such as telecommunications, oil and gas, chemical plant maintenance, large utility projects, and heavy industrial construction.

With a maximum working height of 158 ft. and a horizontal reach of 80 ft., the SX-150 provides exceptional access across expansive jobsites and difficult-to-reach work areas. Its telescopic boom design allows operators to quickly position the platform while maintaining smooth, precise control at elevation. A below-ground reach of 2 ft. adds additional flexibility when working around structures or below grade.

Built for high-capacity performance, the SX-150 features a 750 lb. platform capacity that supports operators, tools, and materials for demanding elevated tasks. A 10 ft. rotating jib enhances versatility and positioning accuracy, allowing operators to work more effectively around structural steel, utility infrastructure, industrial equipment, and confined access points.

Designed with both productivity and transportability in mind, the SX-150 utilizes the Genie X-Chassis® system, which extends for maximum stability during operation and retracts to create a narrower profile for transportation between jobsites. Its variable machine width ranges from 8 ft. 2 in. to 16 ft. 6 in., while overall machine length measures 53 ft. 1 in.

Contact ASCO Equipment today for availability, rental options, and pricing on the Genie SX-150 telescopic boom lift.
