AMMANN

ARX 160

ARX 160 Specifications

Operating Weight: 31,284 lb | 14490 kg

Engine Power: 134 HP | 100 kW

Drum Width: 83.9 in | 2130 mm

Drum Diameter: 55.1 in | 1400 mm

Overall Height: 118.1 in | 3000 mm

Fuel Tank Capacity: 47.5 gal | 180 L

More Product Details

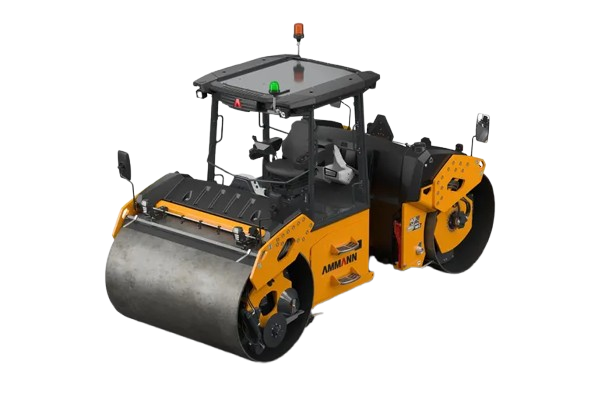

The Ammann ARX 160 is a heavy-duty articulated tandem roller built for big asphalt jobs. With a 134 HP engine, 83.9-inch drum width, and 31,284-lb operating weight, it has the size and power to handle highway work, large paving projects, industrial areas, airfields, and other demanding compaction jobs.

The ARX 160 can handle asphalt lifts from about 1.6 to 7 inches and reaches travel speeds of up to 7.5 mph, helping crews keep production moving. Its vibratory system delivers up to 31,574 lb of centrifugal force, with two amplitudes and multiple frequencies so operators can adjust the compaction settings to match the material and job.

With a 266-gallon water tank and three-stage water filtration system, the ARX 160 helps keep water flowing consistently across the drums while reducing the number of times the operator needs to stop for a refill. Ammann’s Finger-Tip-Steering (FTS) system provides precise control while keeping the operator comfortable, and the articulated design makes it easier to maneuver around the jobsite.

Contact ASCO Equipment today to connect with a local team member who can answer your questions, discuss pricing options, check product availability, and help you determine if the ARX 160 is the right asphalt compactor for your job.

bg-textured-grey

Similar AMMANN Models

ARX_140-removebg-preview

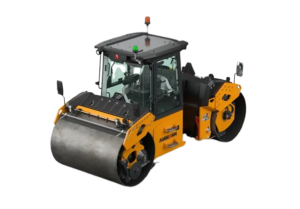

ARX 140
