Operating Weight: 7,893 lb | 3580 kg
Engine Power: 58 HP | 43.2 kW
Drum Width: 47.2 in | 1200 mm
Drum Diameter: 36.6 in | 930 mm
Overall Height: 100.6 in | 2556 mm
Fuel Tank Capacity: 25.9 gal | 98 L

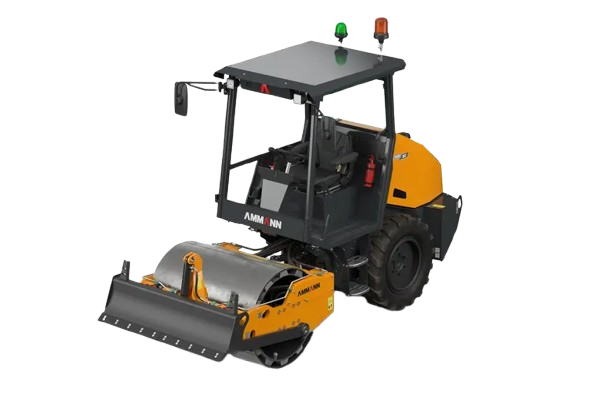

The Ammann ARS 30 is a compact single drum roller built for soil and aggregate compaction on jobs where you need a machine that can work efficiently without taking up a lot of space. With a 58 HP Kubota engine, 47.2-inch drum width, and 7,893-lb operating weight, the ARS 30 is well suited for road work, residential and commercial site development, utility work, landscaping, and other compaction applications.
The ARS 30 delivers up to 15,287 lb of centrifugal force and offers two vibration frequencies and one amplitude, giving operators the ability to adjust compaction performance to match the material and jobsite conditions. It can travel at speeds up to 7.5 mph, while the articulated design and compact size make it easy to maneuver around tighter jobsites.

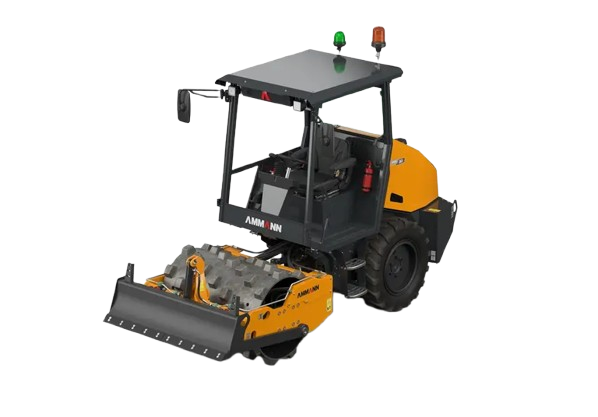

Ammann’s no-rear-axle design helps provide good traction, stability, and maneuverability, while the hydrostatic drive gives the operator smooth control. The standard smooth drum and steel scrapers are built for everyday soil and aggregate compaction, and a Padfoot drum configuration is also available as the ARS 30 PD for applications involving cohesive soils.
If you’re looking for a compact soil compactor that is easy to maneuver but still delivers the compaction force needed to keep your project moving, the Ammann ARS 30 is a versatile option for a wide range of construction jobs.
Contact ASCO to connect with your local team for more information, pricing options, product availability, and help determining whether the ARS 30 is the right roller for your job.
