Operating Weight: 9,182 lb | 4165 kg
Engine Power: 58 HP | 43.2 kW
Drum Width: 55.1 in | 1400 mm
Drum Diameter: 39.4 in | 1000 mm
Overall Height: 100.2 in | 2545 mm
Fuel Tank Capacity: 25.9 gal | 98 L

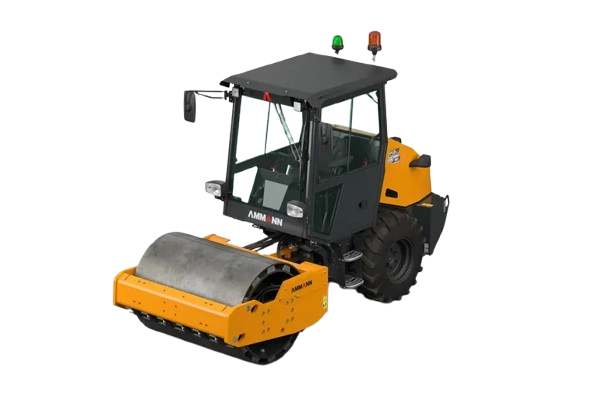

The Ammann ARS 50 is a compact single drum roller built for soil and aggregate compaction on road construction, site development, utility work, residential and commercial projects, and other jobs where maneuverability and compaction performance matter. With a 58 HP Kubota engine, 55.1-inch drum width, and 9,182-lb operating weight, the ARS 50 gives crews a compact machine that can still deliver the compaction force needed to get the job done.
The ARS 50 delivers up to 19,109 lb of centrifugal force and offers two vibration frequencies, allowing operators to adjust the compaction output to match the material and jobsite conditions. It can travel at speeds up to 7.5 mph and work at speeds up to 5.9 mph, helping crews move efficiently between areas of the jobsite and keep production moving.
Ammann’s no-rear-axle design helps provide good traction, stability, and maneuverability, while the hydrostatic drive gives the operator smooth control. The compact design also provides good visibility around the machine, and the standard smooth drum and steel scrapers are built for everyday soil and aggregate compaction.

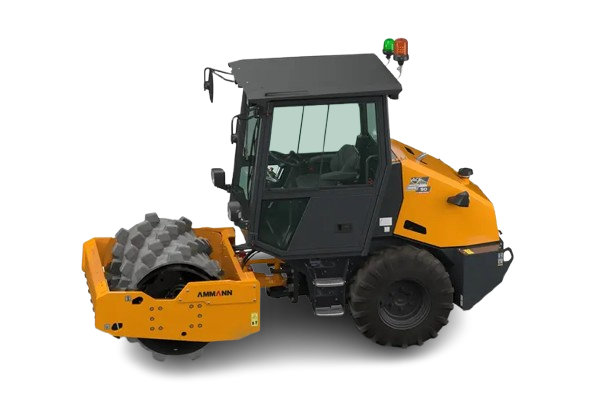

The ARS 50 is also available in a Padfoot configuration as the ARS 50 PD for applications where additional kneading and tamping action is needed on cohesive soils.
If you’re looking for a compact soil compactor that can handle a wide range of road construction, site development, and earthwork applications, the Ammann ARS 50 offers the compaction performance and maneuverability to keep your project moving.
Contact ASCO today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARS 50 is the right roller for your job.
