Engine Power: 130 hp | 97 kW
Operating Weight: 16,000 lb | 7,257 kg
Moldboard Width: 11 ft | 3.35 m
Turning Radius: 22 ft | 6.7 m
Travel Speed: 20 mph | 32 km/h
Frame Articulation: 24° | 24°

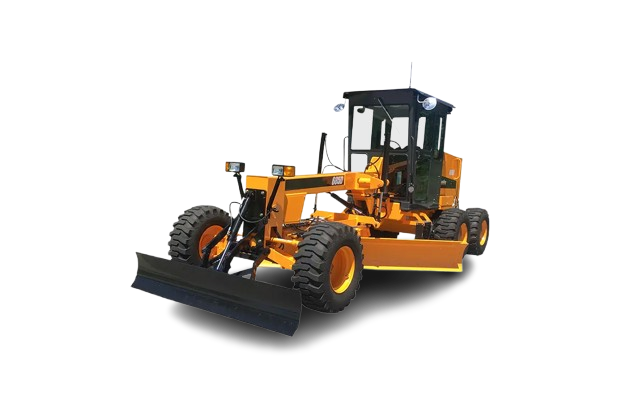

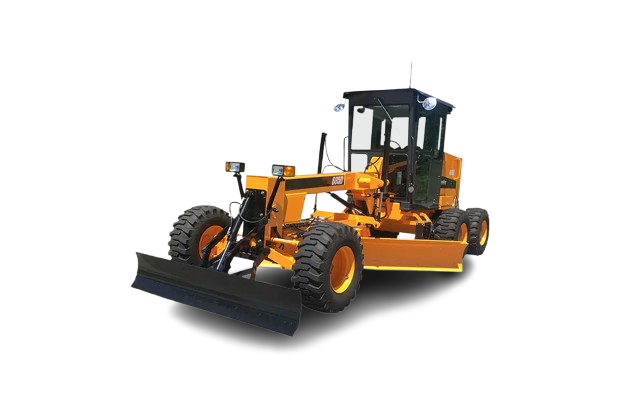

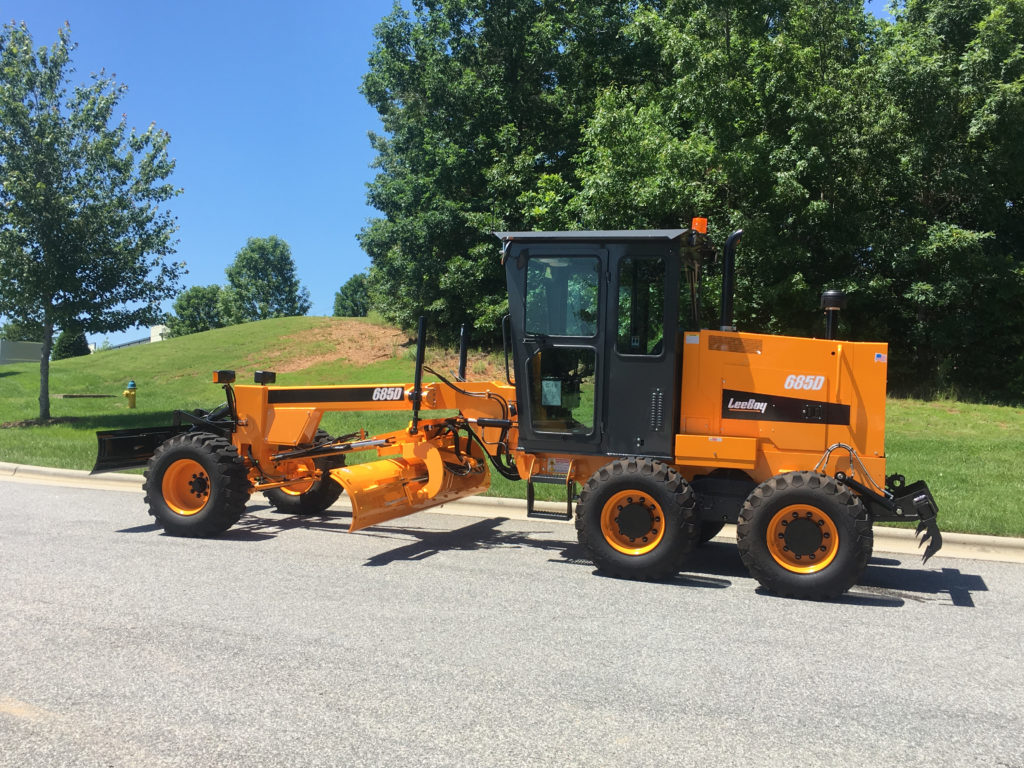

The LeeBoy 685D Motor Grader delivers the power, precision, and maneuverability needed for road maintenance, site preparation, grading, ditch shaping, and municipal applications. Powered by a Cummins Tier 4 Final water-cooled turbocharged diesel engine producing 130 hp (97 kW) at 2,200 RPM, the 685D is built for dependable performance and fuel-efficient operation on demanding jobsites.
Featuring an 11 ft moldboard, articulated frame design, 45-gallon fuel capacity, and a 30-gallon hydraulic reservoir, this compact grader provides smooth grading control, excellent visibility, and productivity in tight working environments. Additional features like electric start, dual 12-volt batteries, and a 135-amp alternator help ensure reliable startup and consistent performance throughout the workday.
Designed with the functionality of a large motor grader, the more compact 685D can be used in many versatile and specialized applications. Ideal for municipalities, contractors, subdivisions, parking lots, and utility projects, the LeeBoy 685D combines durability, maneuverability, and grading performance in one versatile machine. See More Details.
Contact ASCO Equipment today for pricing, availability, financing options, and more information on the LeeBoy 685D Motor Grader.
