LEEBOY

695B

695B Specifications

Engine Power: 130 hp | 97 kW

Operating Weight: 15,500 lb | 7030 kg

Moldboard Width: 11 ft | 3.35 m

Max Travel Speed: 20 mph | 32 km/h

Turning Radius: 22 ft | 6.7 m

Articulation: 24° | 24°

More Product Details

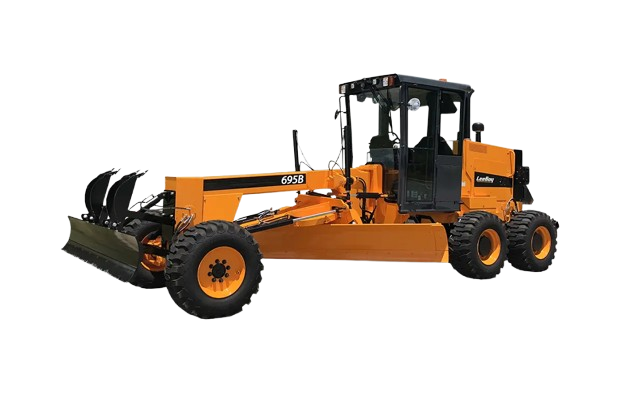

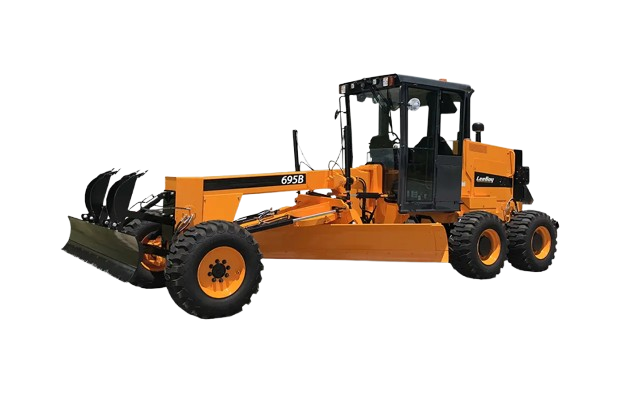

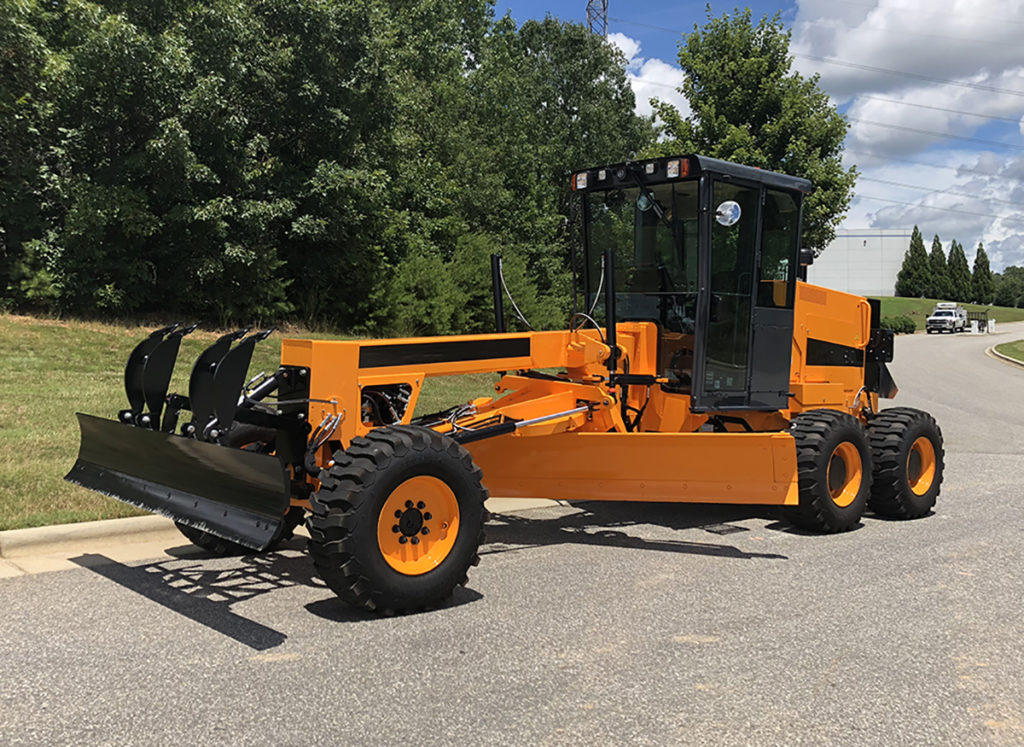

The LeeBoy 695B Motor Grader is a compact, dependable machine built for everyday grading, road maintenance, and municipal work. Powered by a Cummins Tier 4 Final water-cooled turbocharged diesel engine producing 130 hp (97 kW) at 2,200 RPM, it delivers consistent power for finish grading, ditch work, and site prep. With a 45-gallon fuel tank, 30-gallon hydraulic reservoir, electric start, dual 12-volt batteries, and a 135-amp alternator, it’s built to keep you working through long days with minimal downtime.

Sized for maneuverability without sacrificing stability, the 695B features an 11 ft moldboard, 24° articulation, and a 16,000 lb base weight. Its compact footprint—22’ 3” length, 7’ 8” width, and 10’ 2” height (with cab and beacon)—makes it ideal for tighter jobsites like subdivisions, utility work, and municipal roads, while still delivering solid grading control and performance. See More Details

Contact ASCO Equipment for pricing, availability, and more information on the LeeBoy 695B Motor Grader.





bg-textured-grey

Similar LeeBoy Models

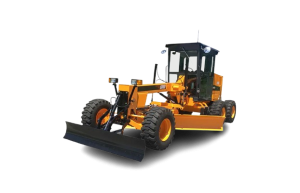

Leeboy-685D-removebg-preview
