Operating Weight: 3,263-3,538 lb | 1480-1605 kg
Engine Power: 21 HP | 15.6 kW
Drum Width: 23.6 in | 600 mm
Overall Height: 54.5 in | 1385 mm
Fuel Tank Capacity: 54.5 in | 1385 mm

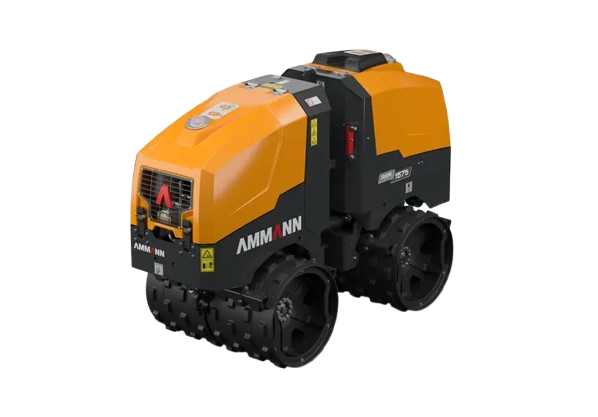

The AMMANN ARR 1575-2 is a remote-controlled trench roller built for compacting soil, backfill, trenches, and other areas where a larger machine simply won’t fit. At just 23.6 inches wide in its standard configuration, the ARR 1575-2 can work in tight spaces while still providing up to 16,186 lb of centrifugal force.
The ARR 1575-2 is powered by a 21 HP Kubota diesel engine and uses a two-stage vibration system. The operator can adjust the vibration to match the material and jobsite conditions, with up to 72 kN of centrifugal force available for tough compaction work.
One of the useful features of this trench roller is the ability to change the working width. The standard drum width is 23.6 inches, but drum extensions can increase the working width to 33.9 inches. That means the same machine can work in a narrow trench and then cover more ground when there is room to spread out.

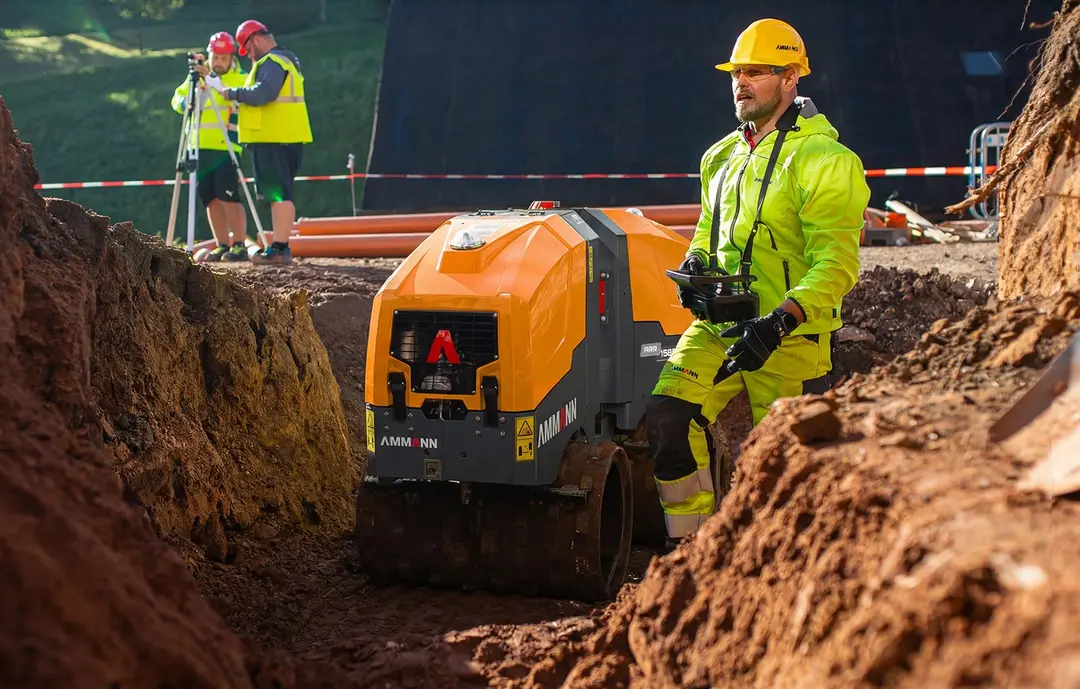

The articulated frame and oscillating joint help keep the drums in contact with the ground as the machine moves over uneven surfaces. The central steering joint also helps the operator make controlled turns in tight areas. The machine is operated remotely with an infrared remote control, keeping the operator out of the trench and away from the machine while it is working.
With a maximum working speed of about 1.1 mph and a maximum transport speed of about 2.1 mph, the ARR 1575-2 is built to work steadily rather than move quickly around the jobsite. It can handle grades up to 35% with vibration, making it a good fit for trench backfill, utility work, cohesive soils, and other compaction jobs where getting good drum contact is important.
If you need a compact trench roller that can get into tight areas and handle tough soil compaction, the AMMANN ARR 1575-2 is a practical option for utility, trench, backfill, and other confined jobs.
Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARR 1575-2 is the right trench roller for your job.
