AMMANN

ARS 200

ARS 200 Specifications

Operating Weight: 43,872 lb | 19900 kg

Engine Power: 215 HP | 160 kW

Drum Width: 83.9 in | 2130 mm

Centrifugal Force: 84,303 lbf | 375 kN

Maximum Transport Speed: 7.46 mph | 12 km/h

Maximum Working Speed: 4.35 mph | 7 km/h

More Product Details

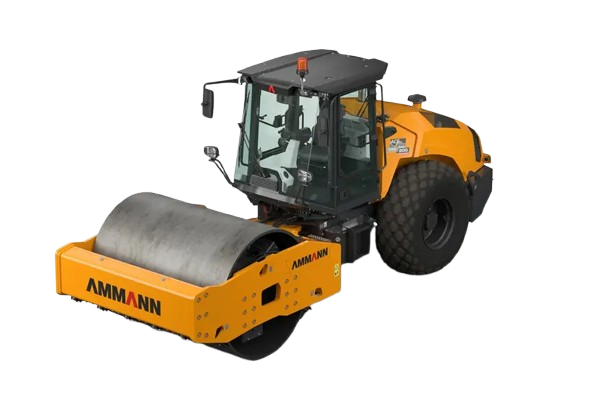

The Ammann ARS 200 is a heavy-duty single drum roller built for demanding soil compaction on large construction, roadwork, site development, and earthwork projects. With a 215 HP engine and an operating weight of 43,872 lb, the ARS 200 delivers the power, weight, and compaction force needed to handle tough jobsites.

The ARS 200 features an 83.9-inch drum and up to 84,303 lbf of centrifugal force for strong, consistent compaction. Multiple vibration settings allow operators to adjust the roller to different soil types and jobsite conditions. A padfoot drum configuration is also available for applications that require greater penetration and kneading action.

With a maximum working speed of 4.35 mph and a transport speed of up to 7.46 mph, the ARS 200 combines high compaction performance with efficient movement around the jobsite. Its heavy-duty design makes it well suited for road construction, large site preparation, utility work, subdivision development, and other large-scale earthwork applications.

Whether you’re compacting road base, fill dirt, aggregate, or preparing a large construction site, the Ammann ARS 200 provides the weight and compaction force needed for demanding soil compaction work.

Need a heavy-duty soil compactor for your next project? Contact ASCO Equipment today to rent or purchase the Ammann ARS 200 single drum roller.
