AMMANN

ARX 26-2

ARX 26-2 Specifications

Operating Weight: 5,578 lb | 2530 kg

Engine Power: 33.5 HP | 25 kW

Drum Width: 47.2 in | 1200 mm

Drum Diameter: 27.4 in | 695 mm

Overall Height: 100.4 in | 2550 mm

Fuel Tank Capacity: 9.2 gal | 35 L

More Product Details

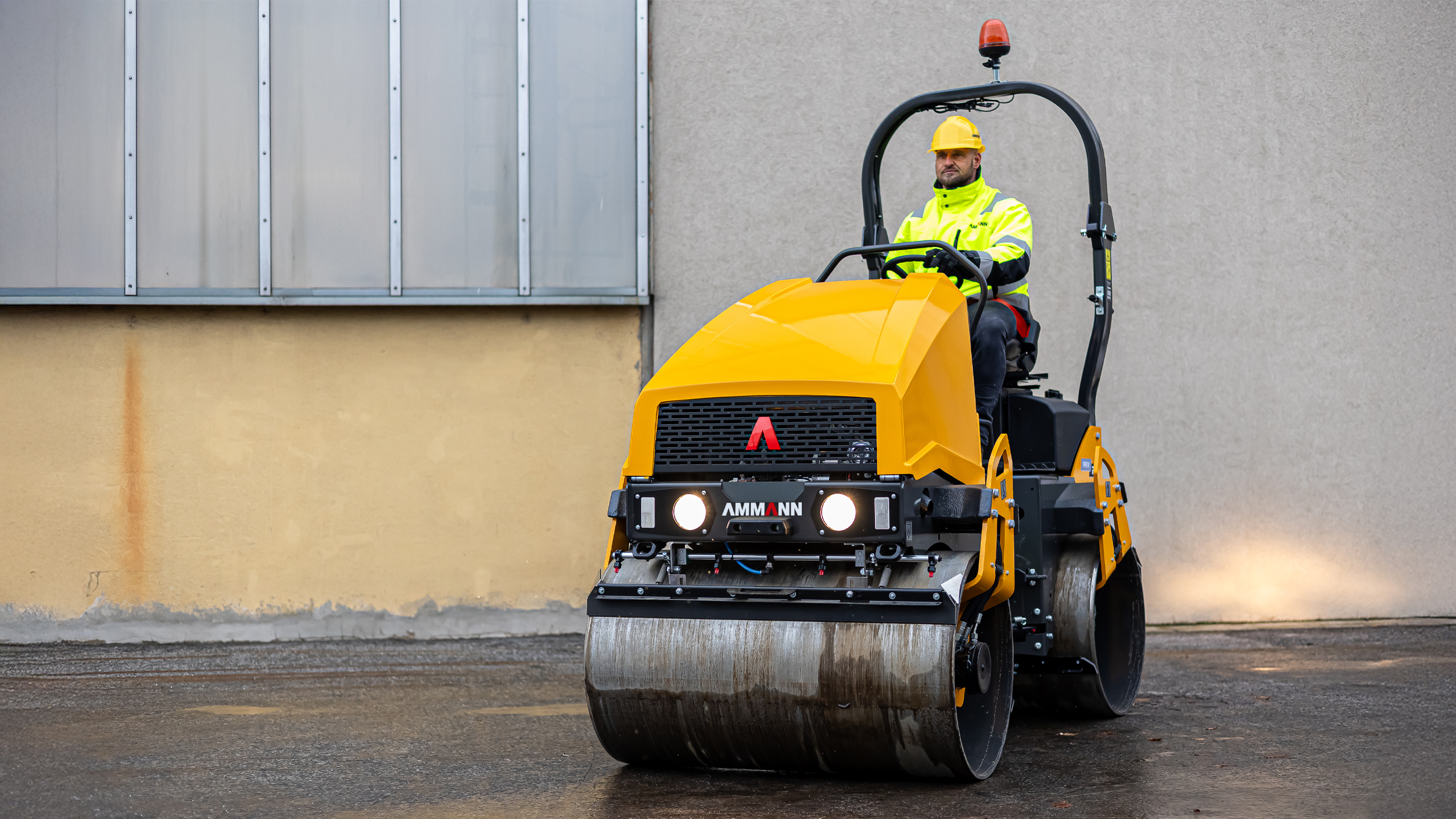

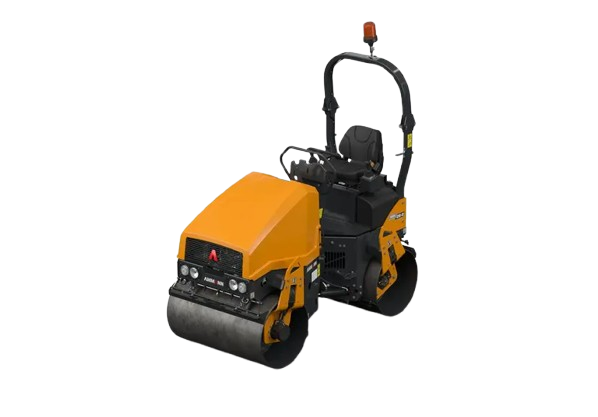

The Ammann ARX 26-2 is a light tandem vibratory roller built for small and medium construction jobs, road maintenance, city street repairs, and other work where you need a compact roller that is easy to handle. With a 33.5 HP Kubota engine, 47.2-inch drum width, and 5,578-lb operating weight, the ARX 26-2 gives you more compaction power without moving up to a much larger roller.

The ARX 26-2 provides up to 9,442 lb of centrifugal force and has two vibration frequencies and two amplitude settings. It can travel up to 6.8 mph, making it easy to move around the jobsite and get from one work area to the next.

The articulation joint lets you quickly move the drums from an in-line position to an offset position. The 1.6-inch drum offset makes it easier to work close to curbs, walls, and other obstacles without having to fight the machine. The oscillating joint also helps keep the drums in contact with the surface as the roller moves over uneven areas.

The ARX 26-2 has front and rear drive and vibration, automatic vibration control, and an electronic drive lever for smooth starts and stops. The 50.2-gallon water tank helps keep the drums wet during asphalt work, and the compact size makes the roller a good fit for smaller jobsites and confined work areas.

The ARX 26-2 can handle asphalt, road repairs, parking lots, pathways, and general compaction work where you need a roller that is easy to maneuver but still has enough weight and vibration force to get the job done.

Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 26-2 is the right roller for your job.
