AMMANN

ARX 23-2

ARX 23-2 Specifications

Operating Weight: 4,949 lb | 2245 kg

Engine Power: 33.5 HP | 25 kW

Drum Width: 39.4 in | 1000 mm

Drum Diameter: 27.4 in | 695 mm

Overall Height: 100.4 in | 2550 mm

Fuel Tank Capacity: 9.2 gal | 35 L

More Product Details

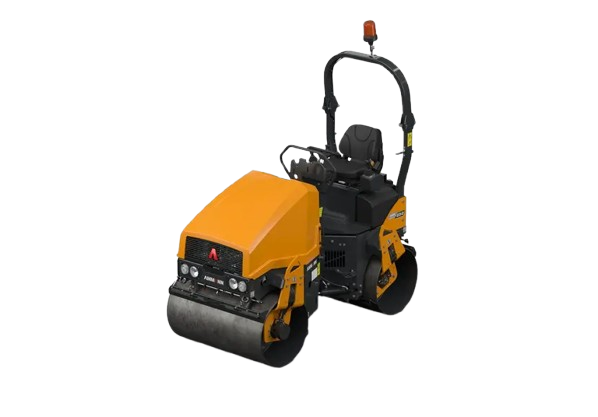

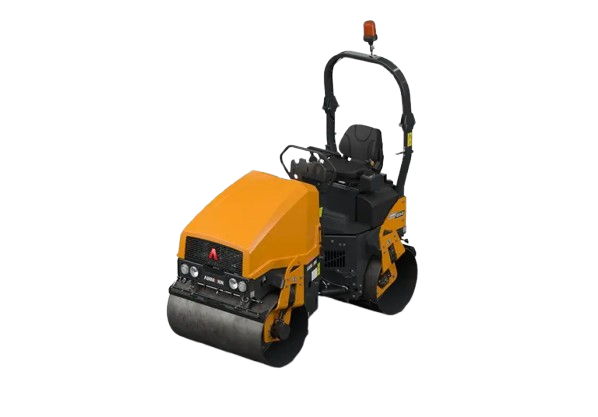

The Ammann ARX 23-2 is a light tandem vibratory roller built for small and medium construction jobs, road maintenance, city street repairs, pathways, and other work where you need a compact roller that is easy to handle. With a 33.5 HP Kubota engine, 39.4-inch drum width, and 4,949-lb operating weight, the ARX 23-2 gives you a good balance of size and compaction power.

The ARX 23-2 provides up to 8,093 lb of centrifugal force and has two vibration frequencies. The operator can adjust the vibration to match the material being compacted, and the roller can travel up to 6.8 mph when it is time to move to another part of the job.

The articulation joint lets the operator quickly move the drums between an in-line and offset position. The 1.6-inch drum offset makes it easier to work close to curbs, walls, and other obstacles. The oscillating joint also helps keep both drums in contact with the surface when working over uneven areas.

The ARX 23-2 has front and rear drive and vibration, automatic vibration control, and an electronic drive lever for smooth starts and stops. The 50.2-gallon water tank helps keep the drums wet during asphalt work, while the compact size makes the roller a good fit for smaller jobsites and confined work areas.

The ARX 23-2 can handle asphalt, road repairs, parking lots, pathways, and general compaction work where you need a roller that is easy to maneuver without moving up to a larger machine.

Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 23-2 is the right roller for your job.
