AMMANN

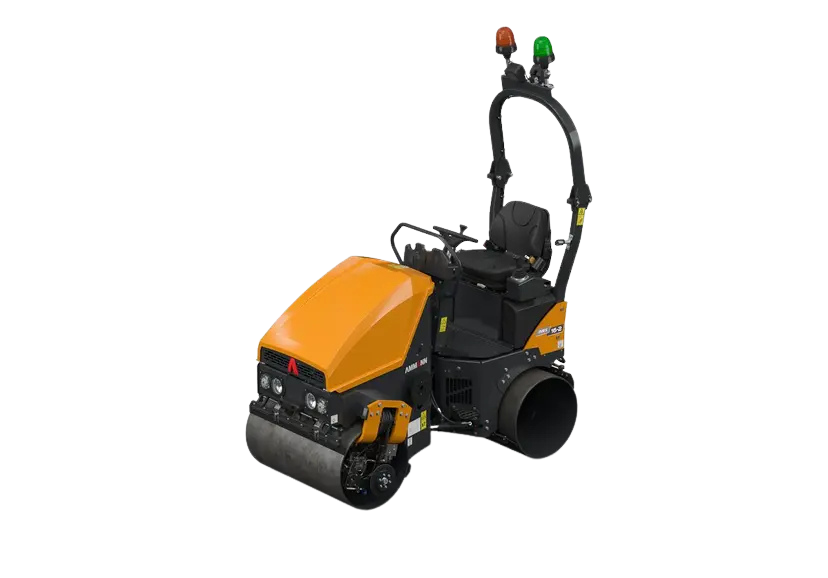

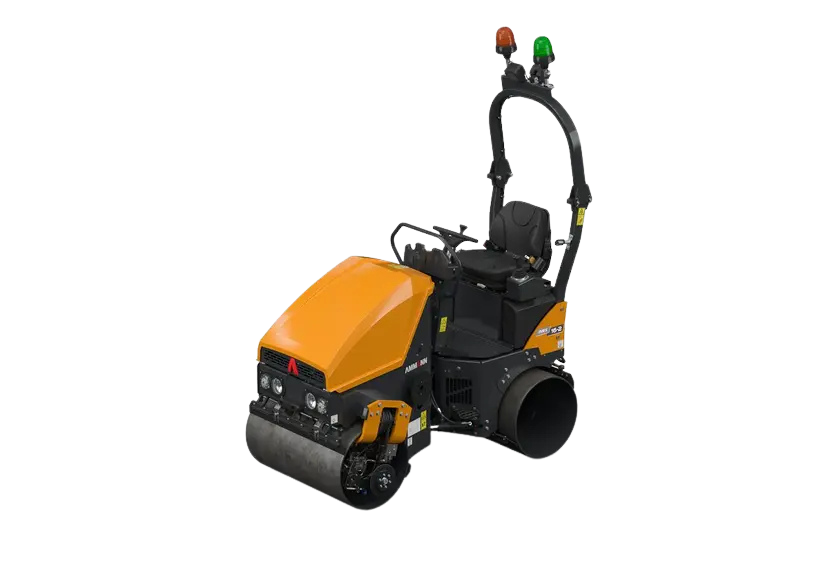

ARX 16-2

ARX 16-2 Specifications

Operating Weight: 3,351 lb | 1520 kg

Engine Power: 21.2 HP | 15.6 kW

Drum Width: 35.4 in | 900 mm

Drum Diameter: 22.8 in | 580 mm

Overall Height: 94.5 in | 2400 mm

Fuel Tank Capacity: 6.3 gal | 24 L

More Product Details

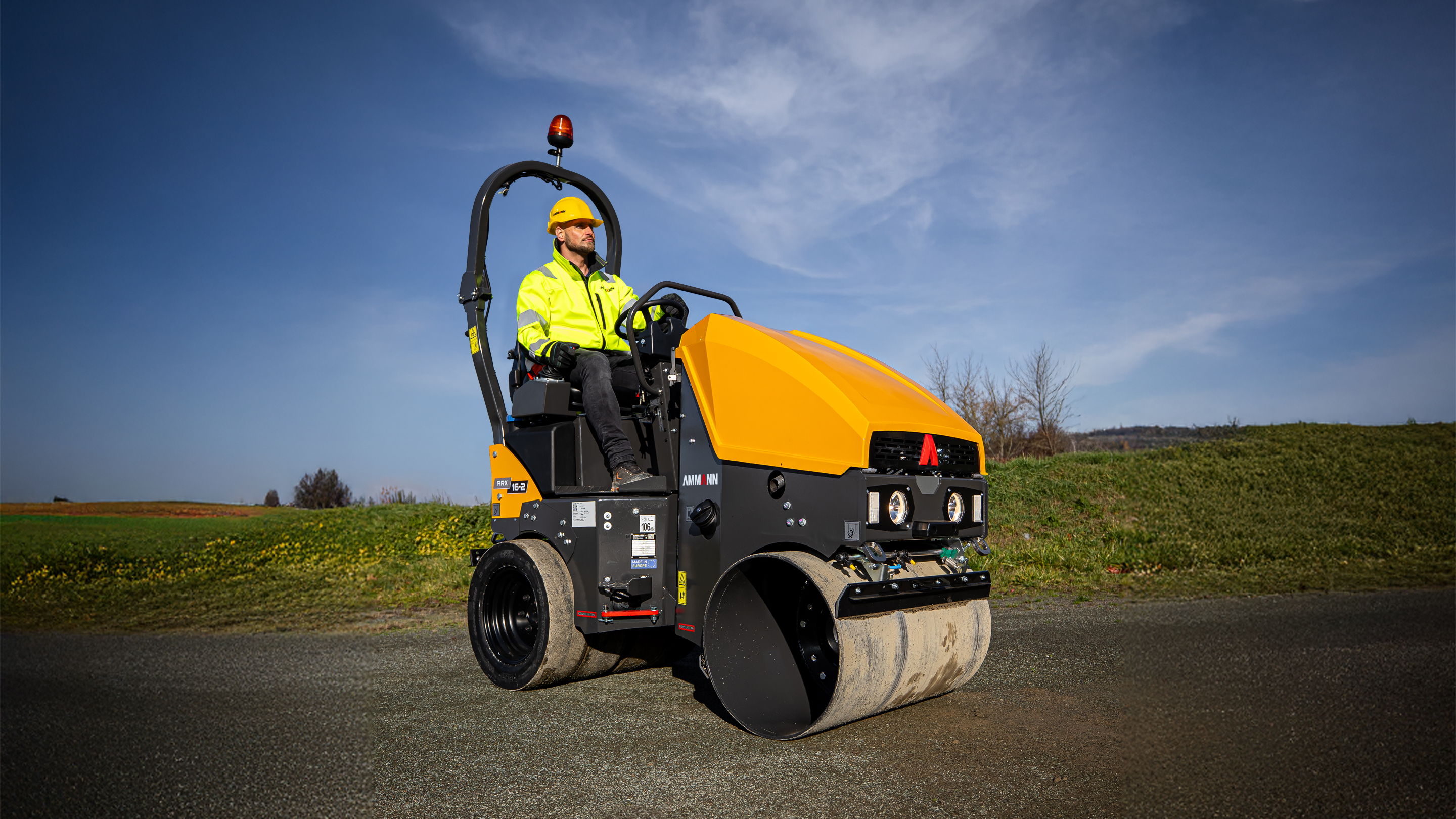

The Ammann ARX 16-2 is a small tandem vibratory roller built for asphalt repairs, sidewalks, parking lots, road maintenance, and other jobs where you need a compact machine that is easy to get around. With a 21.2 HP Kubota engine, 35.4-inch drum width, and 3,351-lb operating weight, the ARX 16-2 can get into smaller work areas where a larger roller may not fit.

The ARX 16-2 provides up to 5,171 lb of centrifugal force and has two vibration frequencies. The operator can adjust the vibration to match the material being compacted, while automatic vibration control helps keep the machine working smoothly.

The articulated design helps the drums stay in contact with the surface as the roller moves over uneven areas. The drums can also be offset by 1.9 inches to help the operator get closer to curbs, walls, and other obstacles. The compact size and tight turning radius make it easier to work in smaller areas and around existing structures.

The ARX 16-2 has front and rear drive and vibration, an electronic drive lever for smooth starts and stops, and a 29.1-gallon water tank for asphalt work. The open operator platform also gives the operator a clear view around the machine.

If you need a small tandem roller for asphalt repairs, parking lots, sidewalks, road maintenance, or other tight jobs, the Ammann ARX 16-2 is a practical machine to have on the jobsite.

Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 16-2 is the right roller for your job.

bg-textured-grey

Similar AMMANN Models

eyJhc3NldF9pZCI6NjAzODUsInNjb3BlIjoiYXNzZXQ6dmlldyJ9ammann-groupgauArpq10JPg265qgmmbsY3-tDS5ER3dFoP1lCxG4hM

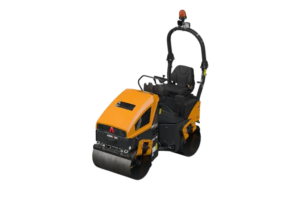

ARX 10.1
New Equipment
ARX_20-2__1_-removebg-preview-1

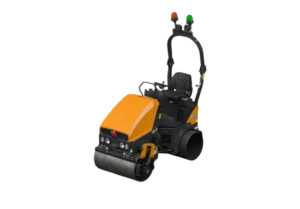

ARX 20-2
