Operating Weight: 2,888 lb | 1310 kg
Engine Power: 21 HP | 15.5 kW
Drum Width: 35.4 in | 900 mm
Drum Diameter: 22.4 in | 570 mm
Overall Height: 94.5 in | 2400 mm
Fuel Tank Capacity: 7.1 gal | 27 L

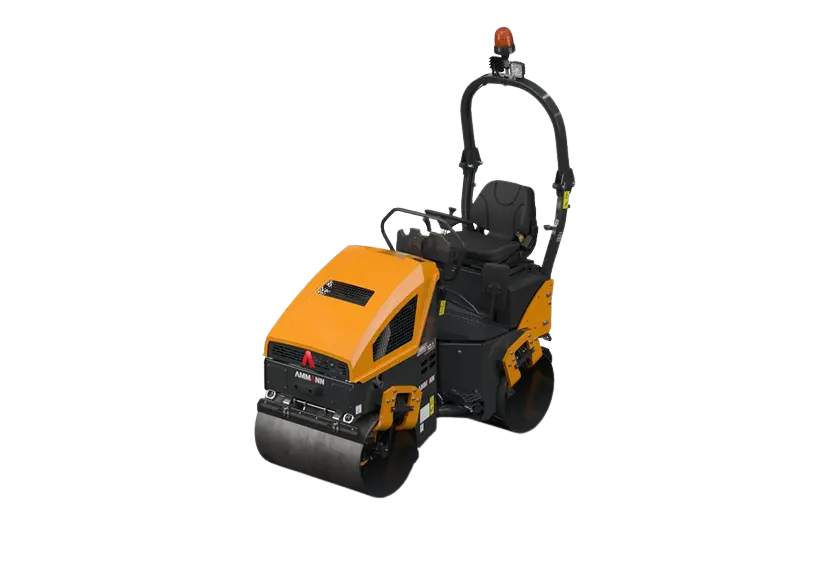

The Ammann ARX 10.1 is a small tandem vibratory roller built for asphalt repairs, sidewalks, parking lots, road maintenance, pathways, and other jobs where space is tight. With a 21 HP Honda GX630 gasoline engine, 35.4-inch drum width, and 2,888-lb operating weight, the ARX 10.1 is easy to move around smaller jobsites and work areas.
The ARX 10.1 provides up to 3,687 lb of centrifugal force and uses a 76 Hz vibration frequency with a 0.020-inch amplitude. It can travel up to 4.9 mph, making it easy to move around the jobsite and get from one work area to the next.
One of the useful features on the ARX 10.1 is its side-free drum design. The drums are supported from one side, which lets the operator get close to walls, curbs, and other obstacles without leaving as much work for another machine. The articulated joint also helps keep the drums in contact with the surface as the roller moves over uneven areas.
The ARX 10.1 has front and rear drive, front drum vibration, an operator station with a single drive lever, and an open platform with safety handles. The 29.1-gallon water tank helps keep the drums wet during asphalt work, while the compact size and tight turning radius make the roller a good fit for smaller paving and repair jobs.
If you need a small roller for asphalt patches, parking lots, sidewalks, road maintenance, pathways, or other confined jobs, the Ammann ARX 10.1 is a practical option when you don’t need a larger tandem roller.
Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 10.1 is the right roller for your job.
