AMMANN

ARX 20-2

ARX 20-2 Specifications

Operating Weight: 3,483 lb | 1580 kg

Engine Power: 21.2 HP | 15.6 kW

Drum Width: 39.4 in | 1000 mm

Drum Diameter: 22.8 in | 580 mm

Overall Height: 94.5 in | 2400 mm

Fuel Tank Capacity: 6.3 gal | 24 L

More Product Details

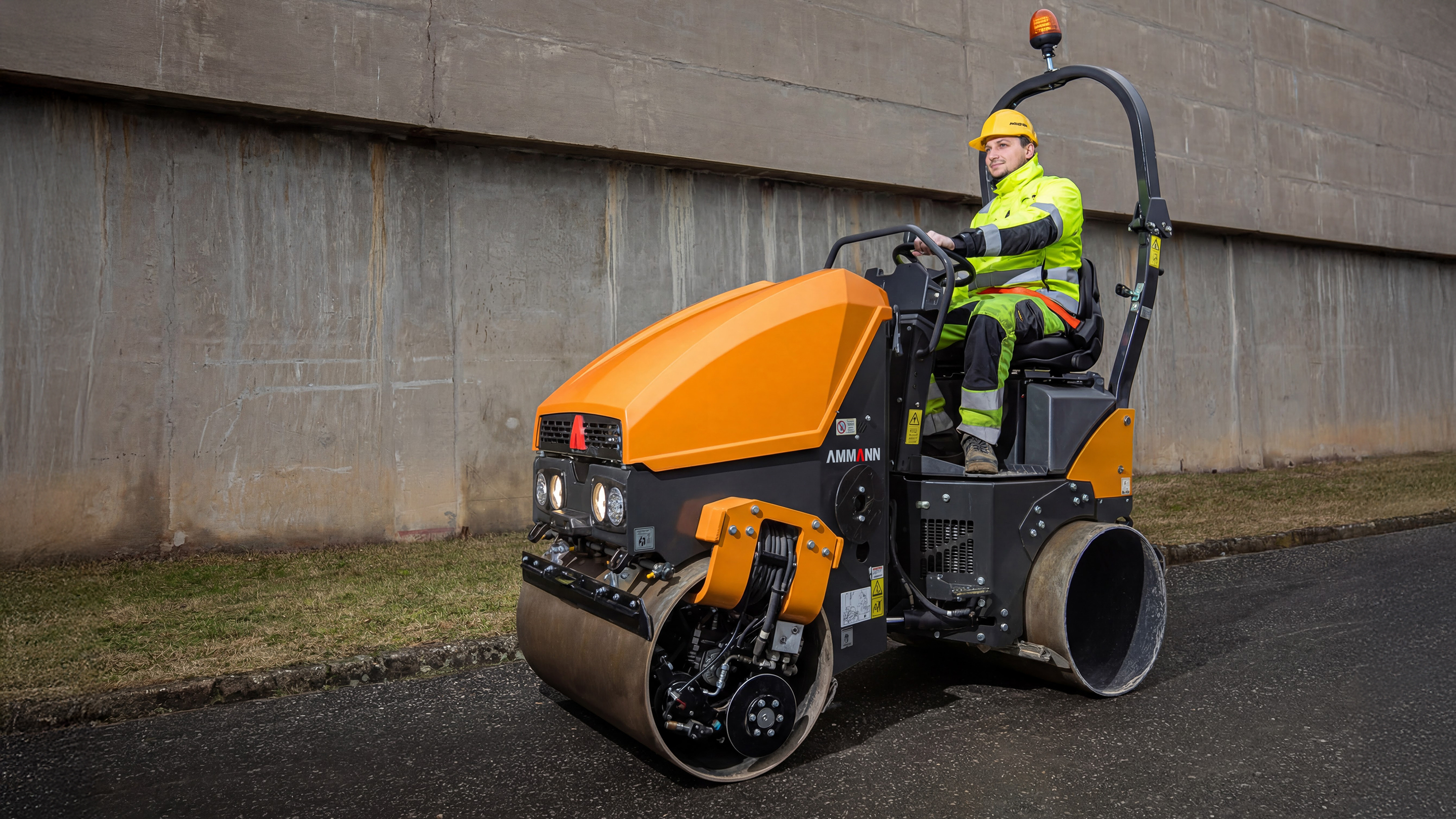

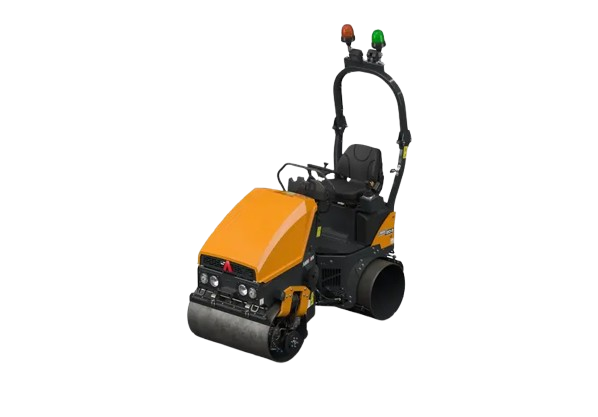

The Ammann ARX 20-2 is a compact tandem vibratory roller made for asphalt work, road repairs, parking lots, sidewalks, and other jobs where space is tight. With a 21.2 HP Kubota engine, 39.4-inch drum width, and 3,483-lb operating weight, the ARX 20-2 is small enough to get into tight spots while still giving you the compaction force you need.

The ARX 20-2 provides up to 5,395 lb of centrifugal force and has two vibration frequencies, so the operator can adjust the machine to the job. It can travel up to 5 mph, making it easy to move around the site and get from one work area to the next.

The articulated design lets the roller work close to curbs and other obstacles without needing a separate machine to finish the edge. The drums can also be offset by 1.9 inches when you need to get closer to an obstruction. An oscillating articulation joint helps keep both drums in contact with the surface as the roller moves over uneven areas.

The ARX 20-2 has front and rear drive and vibration, automatic vibration control, and an electronic drive lever for smooth starts and stops. A 29.1-gallon water tank helps keep the drums wet during asphalt work, while the compact size and tight turning radius make the roller easy to move around smaller jobsites.

If you need a small roller for asphalt repairs, parking lots, road maintenance, sidewalks, or other tight jobs, the Ammann ARX 20-2 gives you the size and maneuverability to get into places where a larger roller can’t.

Contact ASCO Equipment today to connect with your local team for more information, pricing options, product availability, and help determining whether the ARX 20-2 is the right roller for your job.

bg-textured-grey

Similar AMMANN Models

eyJhc3NldF9pZCI6NTk5MjIsInNjb3BlIjoiYXNzZXQ6dmlldyJ9ammann-group3KX_JzeR2pGXhk3RSiAdhEXD1wz32oVPa5RhYOtmNDc

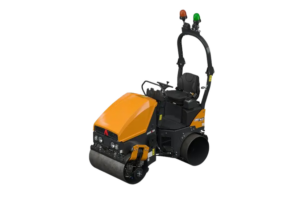

ARX 16-2
